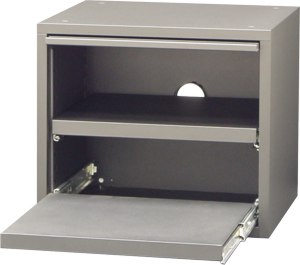

FC20X24 Narrow Flip Door Pullout Cabinet

Like all Pullout Cabinets FC20X24 features a series of slots. Sliders or brackets snap in to the slots and optional shelves or mini drawers snap on to the sliders or brackets.

It will carry your electronic components, laptop or printers and can act as a power station for all things that need to be charged. It is sized exactly like our narrow 3 drawer cabinet and will line up with any of our 20.5" high cabinets. FC20X24 holds a single stack of components and has 16.5" of available vertical height when used with a stationary base shelf or 14.5" of available height when a pullout shelf is used. There is a generous wiring cutout at the back. FC20X24 will also accommodate six mini drawers making it a very useful and versatile storage or parts cabinet.

Shelves and drawers are sold separately.

SPECIFICATIONS
Weight: 36 lbs
Cabinet Dimension: 23.5" W x 20.5" H x 20" D
Inside Dimension: 21.5 " W x 17.5" H x 19” D
Construction: 18 & 22 ga cold rolled steel
Finish: Baked on powder coat

A ' 20 Series' Narrow cabinet

FC20X24 is the same height and depth as standard width cabinets; MC3D20, MC2D20, COM2D20, CAB20 and FDCAB20. It shares the exact dimension of the following narrow cabinets - M3D20X24, M2D20X24, and CH20X24. This is useful when designing configurations or a desk where things need to line up.

FEATURES
- Flip door keeps electronics dust-free and out of sight
- Flip door is out of the way when the cabinet is open
- Available with key lock for added safety and security
- Series of slots accept optional shelves or drawers
- Provides dust free space efficient storage
- Adjustable feet levelers provide stability and lift the
  cabinet off the floor. The levelers rest in dimples
  topside for positive positioning when stacking
- Includes hardware for connecting when stacking
- Large wiring cutout lets you stay connected
- Available in 18 colors.

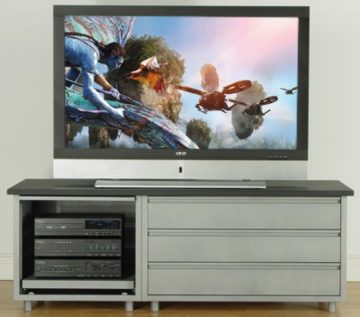

TV-stand

Narrow Pullout Cabinet Accessories / Shelves & Drawers

Narrow Pullout Accessories
Narrow Mini Drawers

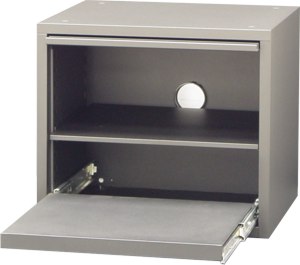

PUSHE24 - The PUSHE24 pullout shelf is designed to work in our narrow flip door cabinets. It makes wiring a breeze and is ideal for top loading electronics or turntables. Makes a great laptop station too.

21" W by 2" H by 18" D ~ 9 lbs


ASHELF24 - Adjustable Stationary Shelf or Base Shelf. It only takes up 1" of height in your cabinet. As a base shelf, ASHELF24 rests on the levelers and creates a false floor that is flush with the bottom lip of the cabinet.

 21" W by 1" H by 18" D ~ 7 lbs

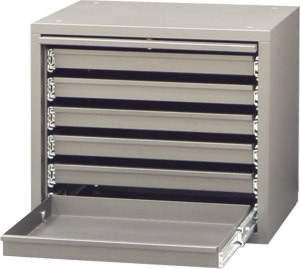

MINDW24 - Narrow Mini Drawers are designed to work in our narrow flip door cabinets. Just the right height for smaller items - but strong enough for whatever will fit. Full extension sliders mean you have access to every inch of space.

 20.75" W by 1" H by 18" D ~ 7 lbs

Levelers protrude through the bottom of all pullout cabinet floors and a shelf that creates a false floor is recommended.

MATCHING COMPONENTS
The M3D20X24 shares the dimensions of these cabinets. Useful when designing configurations or a desk that need to be at a common height. Click on a picture to see details.
M3D20X24 M2D20X24 CH20X24

OPTIONS: WHEELS / CADDY / LEGS / MICA TOP / METAL TOP / NARROW SHELVES & MINI DRAWERS
